¶ 💡 Compatibility
This guide applies to the following machine and software. Please note when referencing:
- Machine model: U1
- Software: Snapmaker Orca, Snapmaker App
¶ ⏰ When to Use This Guide
-
Cloud Mode Connection Failure: Snapmaker Orca cannot discover or connect to the U1 via the cloud.
-
Abnormal Status Icon: The touchscreen displays a "Cloud Connection Error" icon in the top-right corner.
-
App Binding Failure: Snapmaker App cannot search for or connect to the U1.
¶ 📋 Quick Info Card
- Difficulty: ⭐⭐☆☆☆ (Easy)
- Estimated Time: 15–20 minutes
- Required Skills: Basic software operation, network setup
¶ 🔁 Troubleshooting Flowchart
Click to expand the flowchart
¶ 🔍 Quick Diagnosis
Which situation are you experiencing?
- Device cannot obtain an IP address → Go to Scenario 1
- Device has an IP but cannot connect (region setting issue) → Go to Scenario 2
- Previously connected successfully but suddenly cannot connect (error: device connection failed) → Go to Scenario 3
¶ 🔧 Preparation
¶ Required Tools
- Computer running Snapmaker Orca
- Mobile device with Snapmaker App installed
- 2.4GHz Wi-Fi network environment
¶ ⚠️ Important Notes
¶ (1) Network Frequency
U1 only supports 2.4GHz Wi-Fi. Please ensure your router has 2.4GHz enabled; 5GHz is not supported.
¶ (2) Operation Confirmation
Before starting, make sure you have followed the correct cloud mode connection steps in the Snapmaker Orca Quick Start Guide (for U1).
¶ (3) Firmware and Software Versions
Ensure the printer firmware, Snapmaker Orca, and Snapmaker App are updated to the latest versions. As of December 18, 2025, the latest versions are:
- Firmware:
0.9.4 - Snapmaker Orca:
2.1.5 - Snapmaker App:
2.1.5
If you cannot update the firmware online due to connection issues, please use the local firmware update method: U1 Firmware Release Notes
¶ 🛠️ Troubleshooting Steps
¶ Scenario 1: Device Cannot Obtain an IP Address

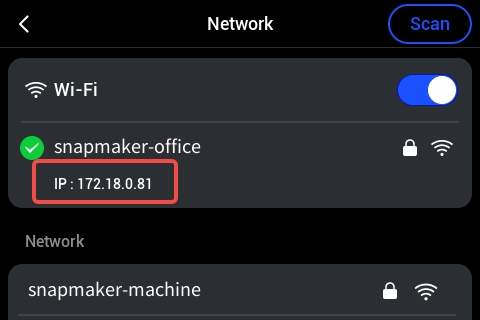

¶ Step 1. Check if the IP address is displayed on the touchscreen
- Go to Settings → Wi-Fi and check if an IP address is shown.
- If an IP is displayed → proceed to Step 2: Confirm Region Settings

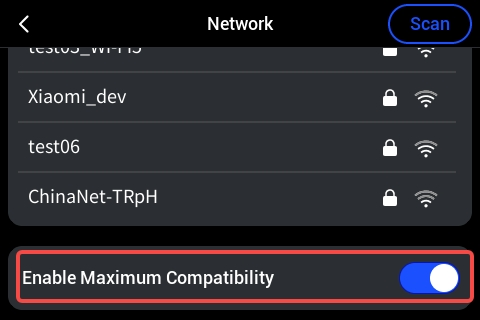

- If no IP → try enabling Wi-Fi Compatibility Mode, then reconnect to your Wi-Fi network and check if an IP is obtained.
Maximum compatibility: Some Wi-Fi access points may have advanced features that are not fully compatible with the printer’s Wi-Fi module, causing IP acquisition failure. If you encounter connection issues, try enabling the "Maximum Compatibility" option (default off).
- If IP is still not obtained after enabling compatibility mode:
- Confirm the wireless router or access point is functioning properly (test with a computer or phone).
- Try connecting U1 to a 2.4GHz mobile hotspot to see if it obtains an IP.
If the network is abnormal, fix it before retrying the connection.
¶ Scenario 2: Device Obtains IP but Cannot Connect

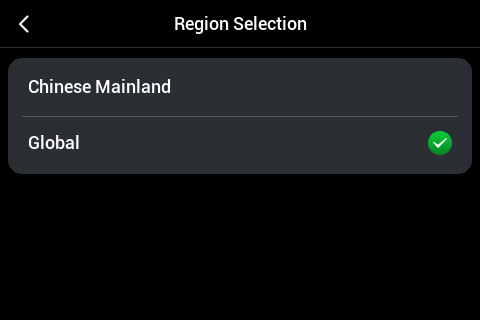

¶ Step 2. Confirm Region Settings
- On the touchscreen, go to Settings → Account → Region. Select "International" for regions outside Mainland China.

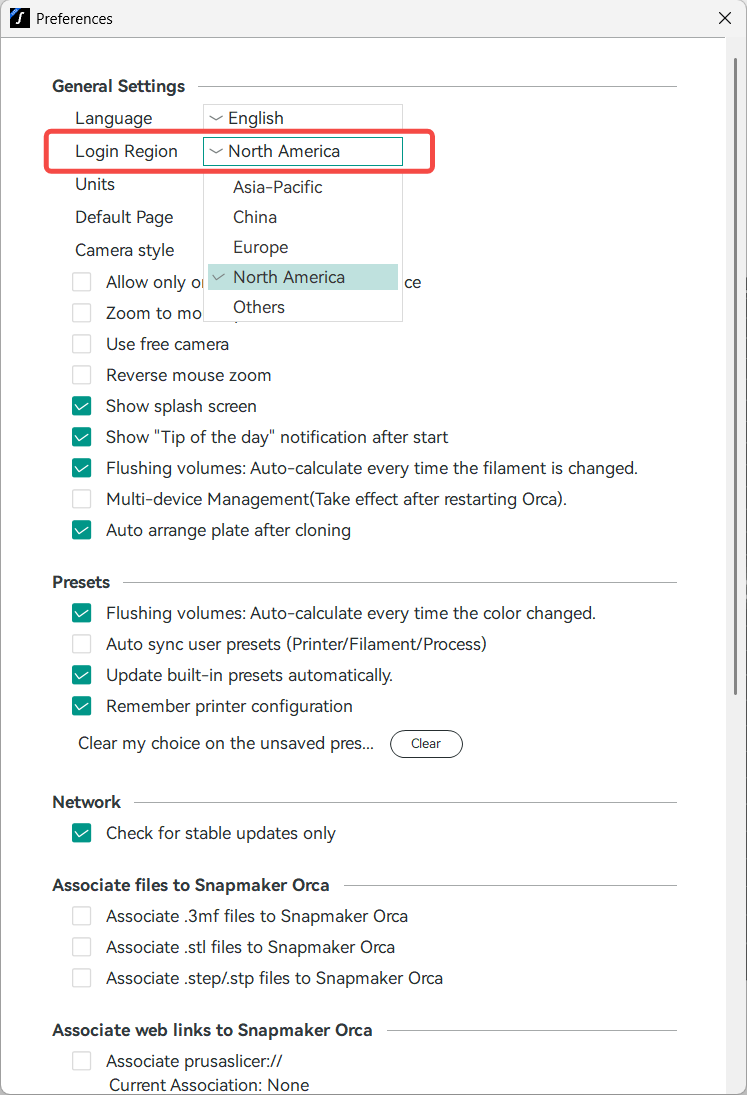

- Ensure Snapmaker Orca and the device are in the same region.

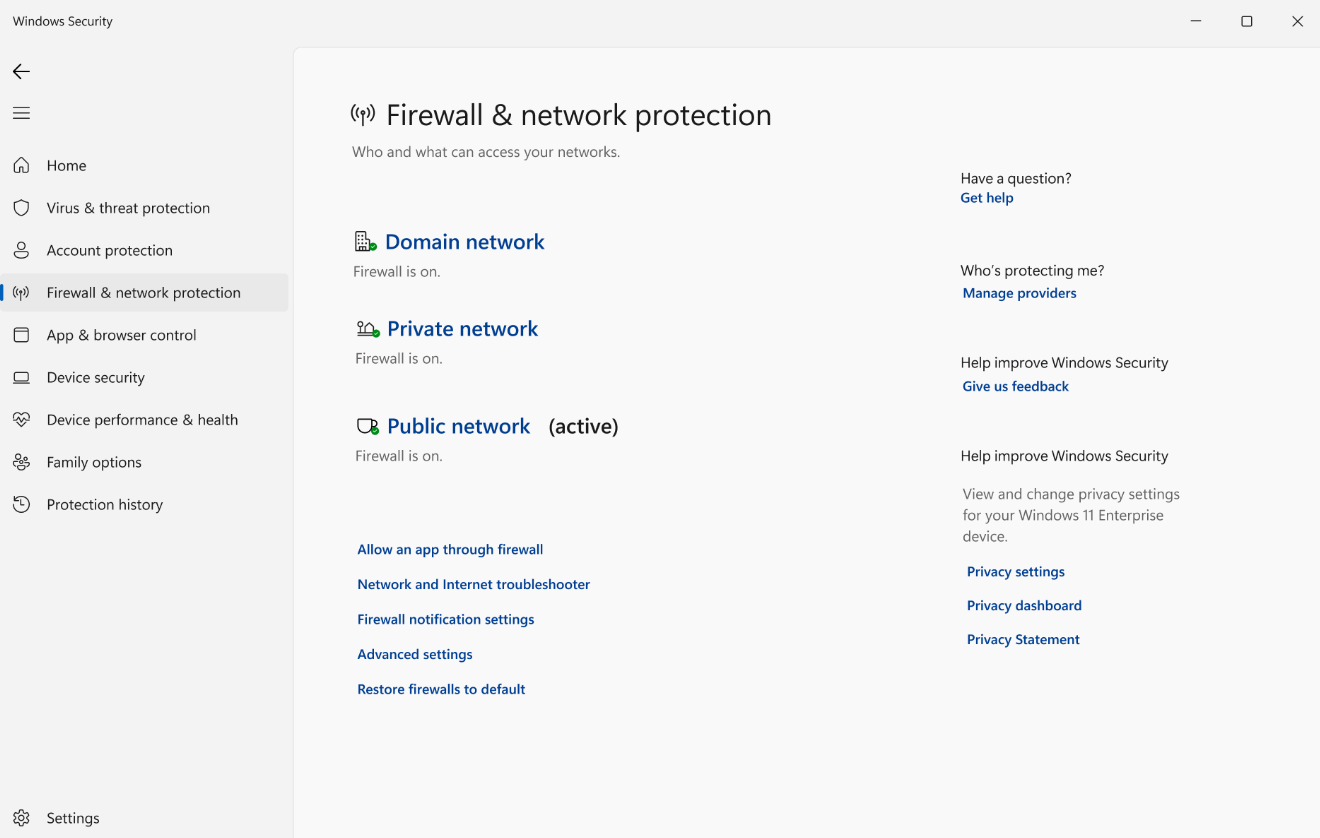

¶ Step 3. Check Firewall and VPN
-
Ensure your computer firewall is not blocking Snapmaker Orca from accessing the network.
-
Ensure no VPN or proxy is active on your computer.
Images show Windows as an example. Mac or Linux users should also check firewall and VPN/proxy settings.
¶ Scenario 3: Previously Connected Successfully, Suddenly Cannot Connect

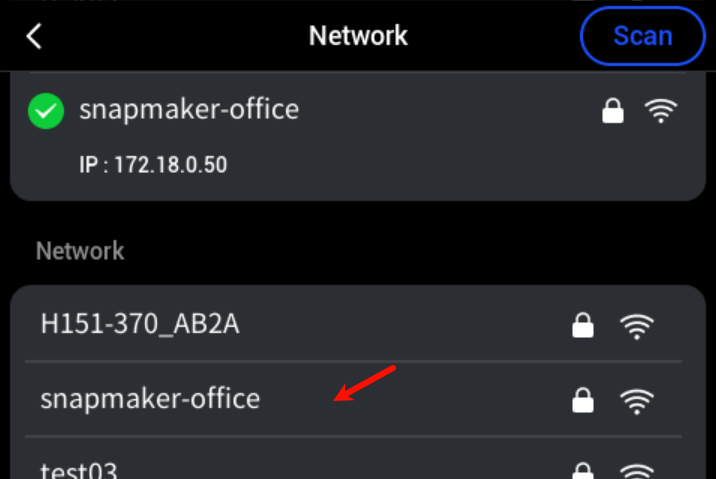

¶ Step 4. Forget the Wi-Fi Network and Reconnect
In some unexpected cases, connection failures may occur due to timeout. You can try “forgetting” the network and reconnecting.
- Long-press the Wi-Fi network for more than 3 seconds, release it → the printer will forget the network.
- Then reconnect to the Wi-Fi.
¶ Step 5. Export Logs if Issue Persists
If all steps fail, export both the printer and Snapmaker Orca logs and contact Snapmaker Support with these logs and the timestamp of the issue.
¶ ✅ Verification
-
Device successfully obtains an IP address
-
Snapmaker Orca shows “Connected” in the top-right corner
-
Snapmaker Orca successfully connects to the device via cloud mode
¶ 📚 Related Resources
- How to Export U1 Logs
- How to Export Snapmaker Orca Logs
- U1 Firmware Release Notes
- Snapmaker Orca Quick Start Guide (for U1)
¶ 💬 Reach out to Snapmaker Support
After following the troubleshooting steps, if you find it difficult to resolve your issue, kindly submit a support ticket through https://snapmaker.formcrafts.com/u1-troubleshooting-request and share your troubleshooting results with some pictures/videos.
Our dedicated support team will be more than willing to assist you in resolving the issue.
