For flexible filaments such as TPU, Manual Unloading is required.
For rigid filaments such as PLA and PETG, please refer to Auto Unloading.

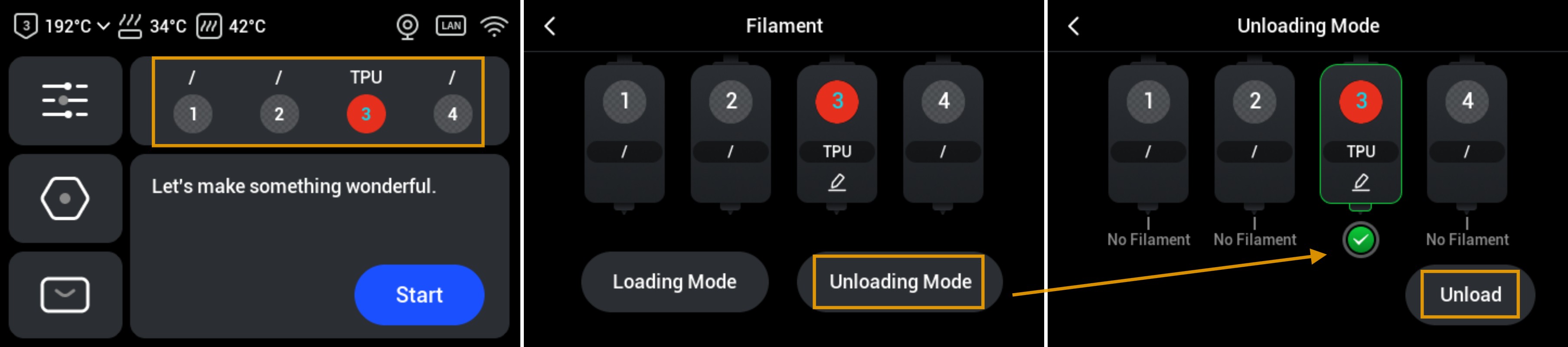

- On the touchscreen main interface, navigate to the Filament page. Tap
Unloading Mode. Select all toolheads requiring unloading, then tapUnload.
- A prompt will appear. Tap
Confirm.
-
The printer will extract the selected toolhead and automatically heat the nozzle.
-

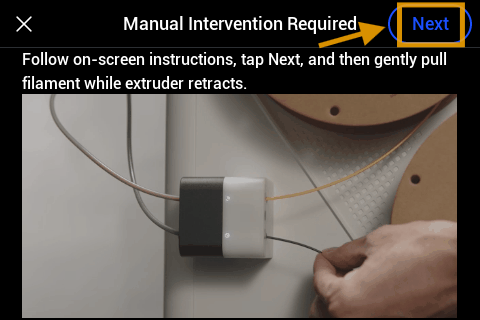

Once the nozzle reaches the target temperature, a dynamic guide will pop up on the screen. Tap
Next, then manually pull the filament outward to assist with unloading.
The on-screen guidance is for illustrative purposes only. TPU filament cannot be used with the filament feeder. Please pull the filament out directly from the filament tube.
- Once all unloading is complete, tap
OK.
-

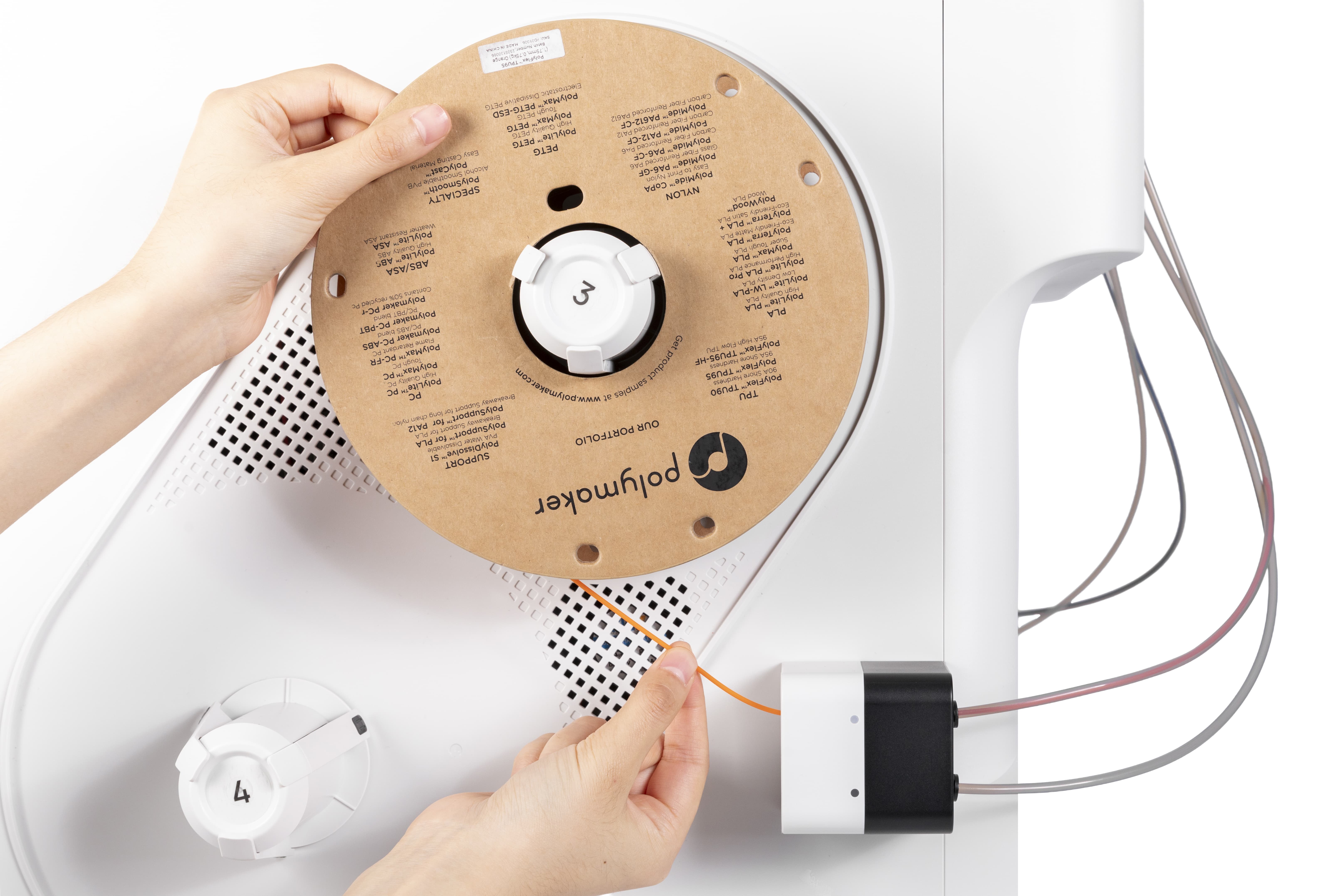

Rotate the spool to retract the filament from the tube until the white indicator light on the corresponding feeder turns off.
-

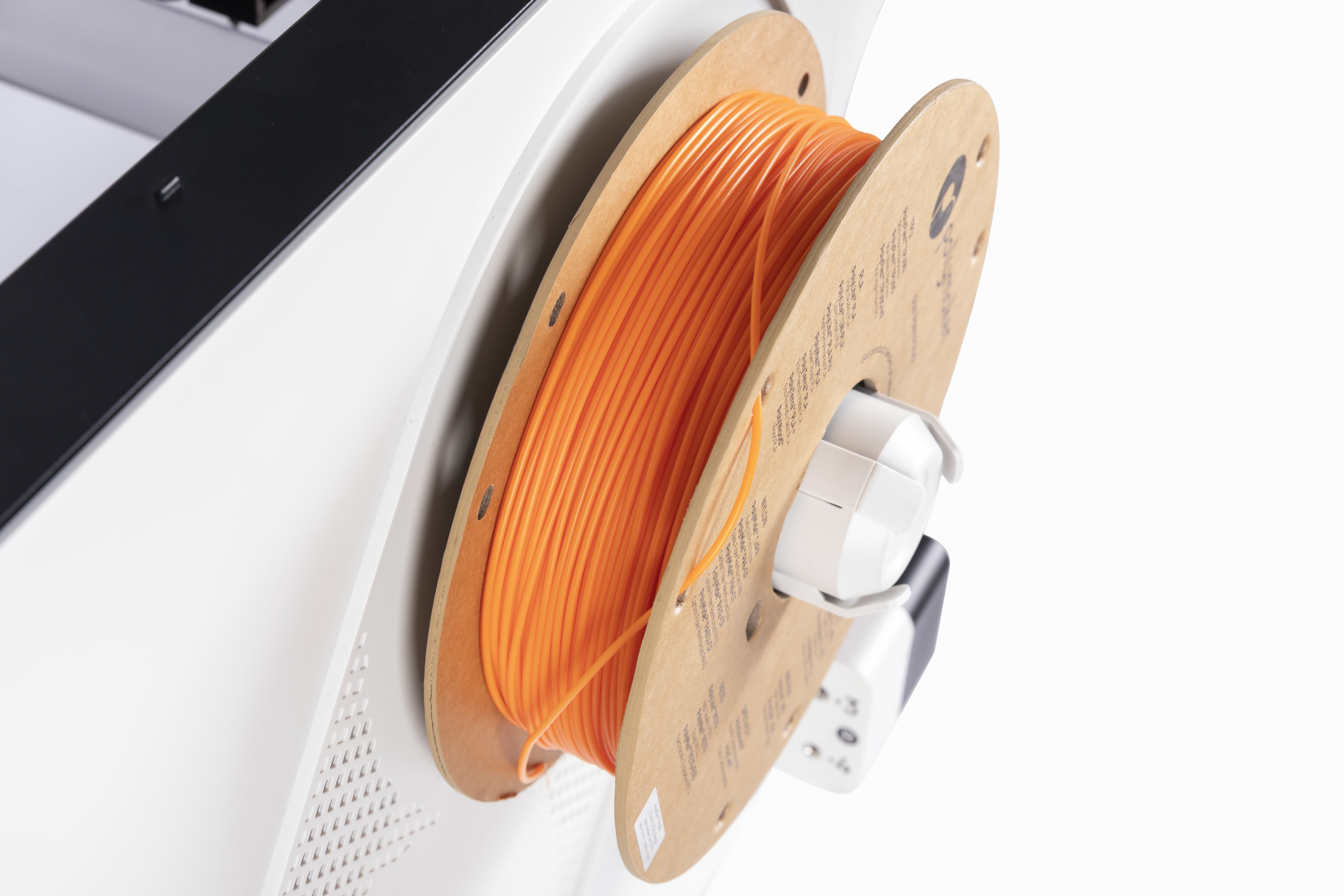

Thread the end of the filament through the two locking holes on the spool to prevent loosening or tangling.
- Remove the spool from the spool holder.
- Repeat the steps above until all intended filaments have been successfully retrieved.
