¶ Overview
¶ Location

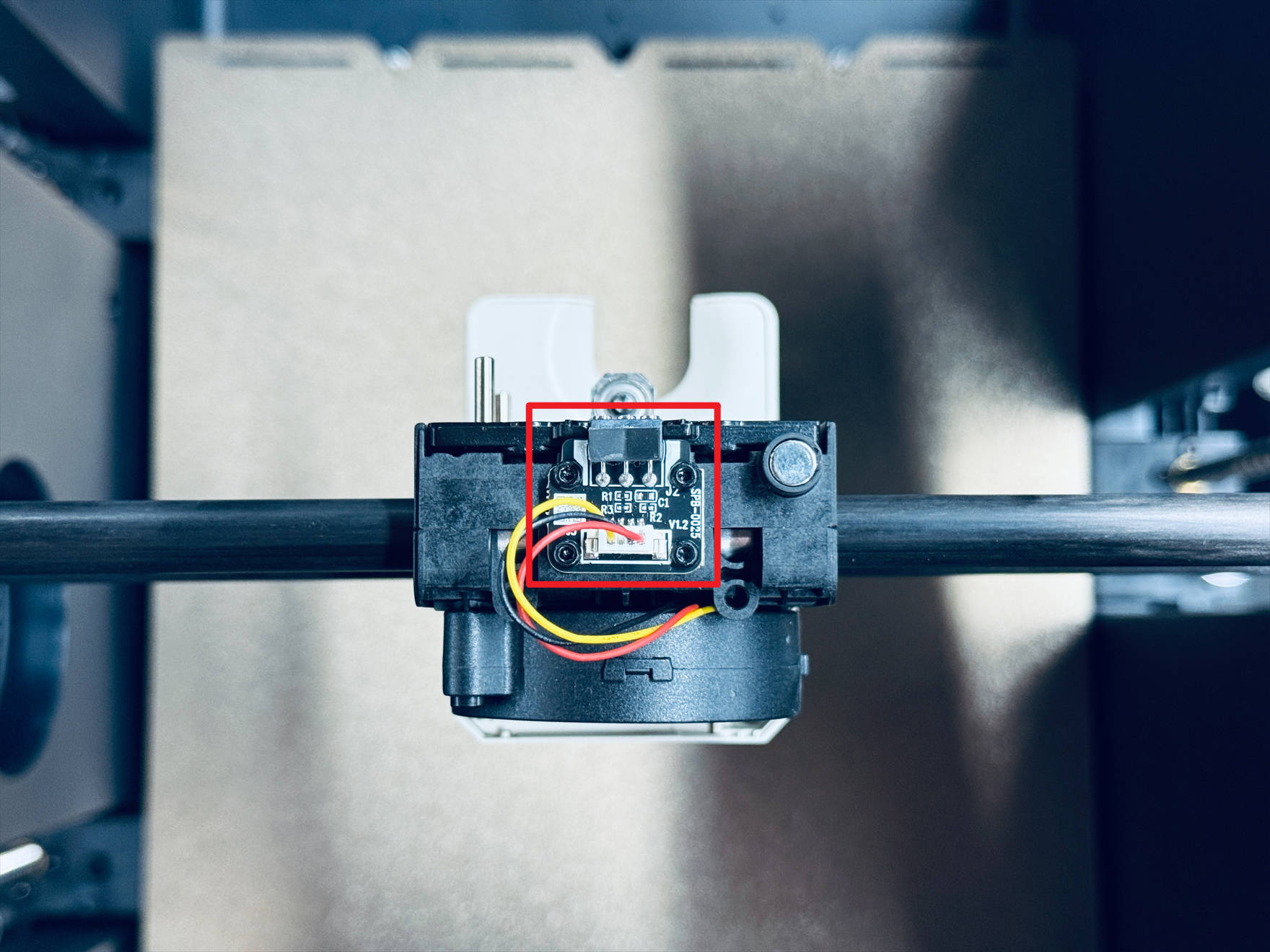

- Part cooling fan adapter board is located inside the toolhead swapper.
- To access the adapter board for replacement, the part cooling fan cover must be removed.
¶ Difficulty and Time Estimate
- Difficulty：★☆☆☆☆ (Easy)
- Estimated Time：5 minutes
¶ Where to Buy
US: https://us.snapmaker.com/products/part-cooling-fan-adapter-board-2-pack-for-snapmaker-u1
EU: https://eu.snapmaker.com/products/part-cooling-fan-adapter-board-2-pack-for-snapmaker-u1
Global: https://shop.snapmaker.com/products/part-cooling-fan-adapter-board-2-pack-for-snapmaker-u1
¶ Tools and Parts Required
- H1.5 hex key
- H2.0 hex key
- New part cooling fan adapter board
¶ Procedure
-

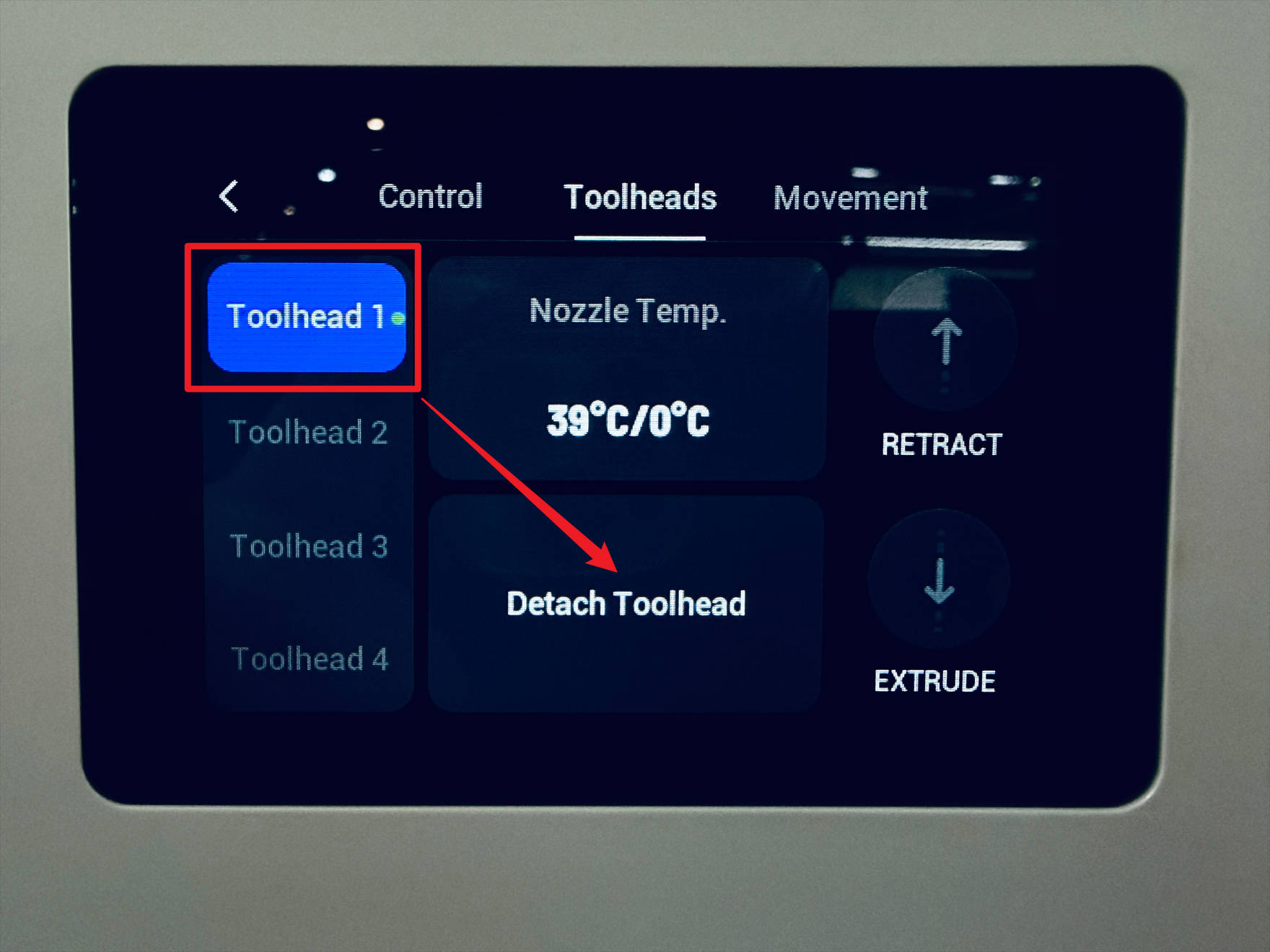

Detach the toolhead from toolhead swapper, then power off U1.
-
Manually move the toolhead swapper to a convenient position for operation.
-
Use H2.0 hex key to remove the 2 screws.
-
Remove the part cooling fan cover.
-

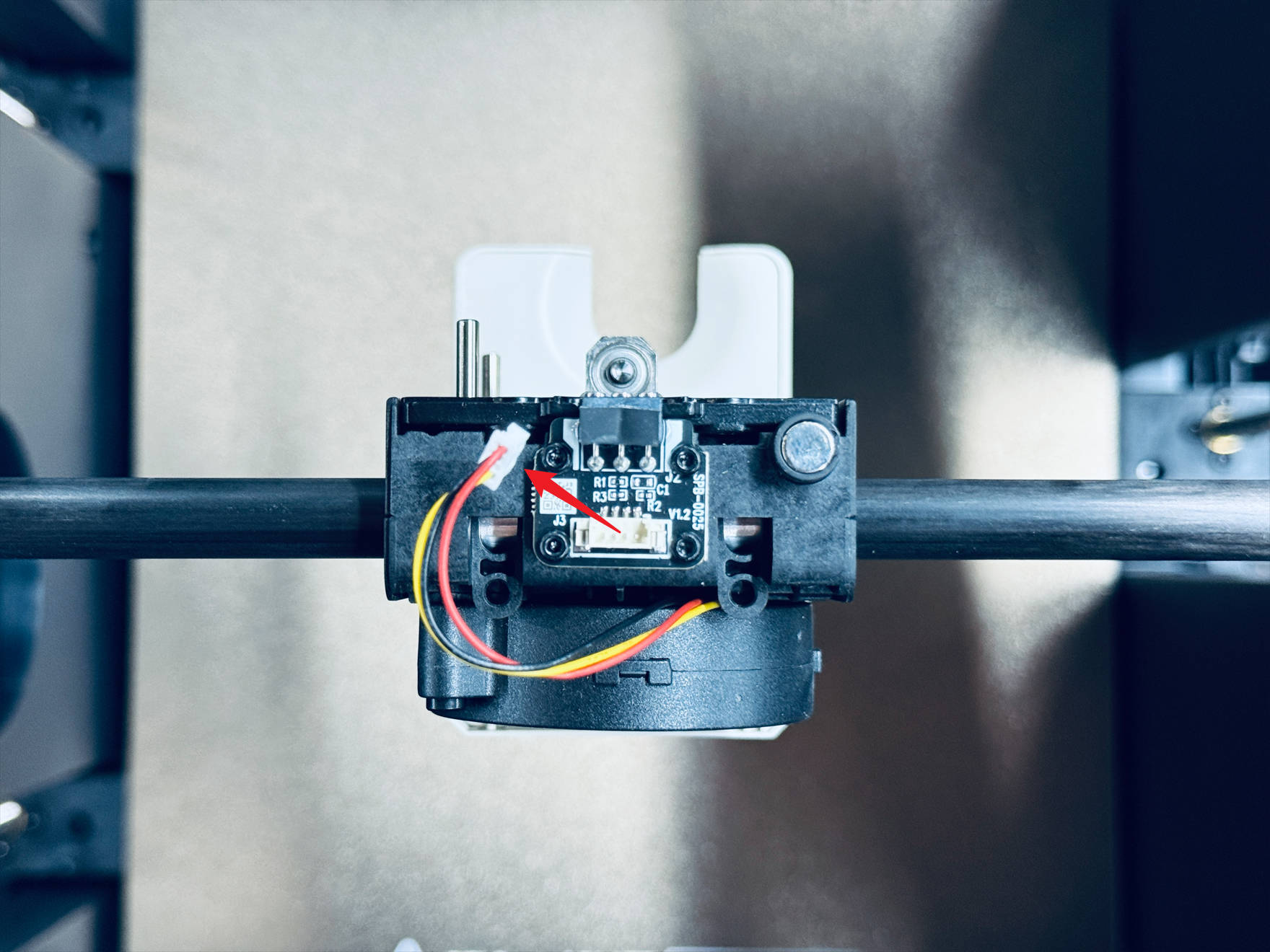

Disconnect the part cooling fan cable.
-

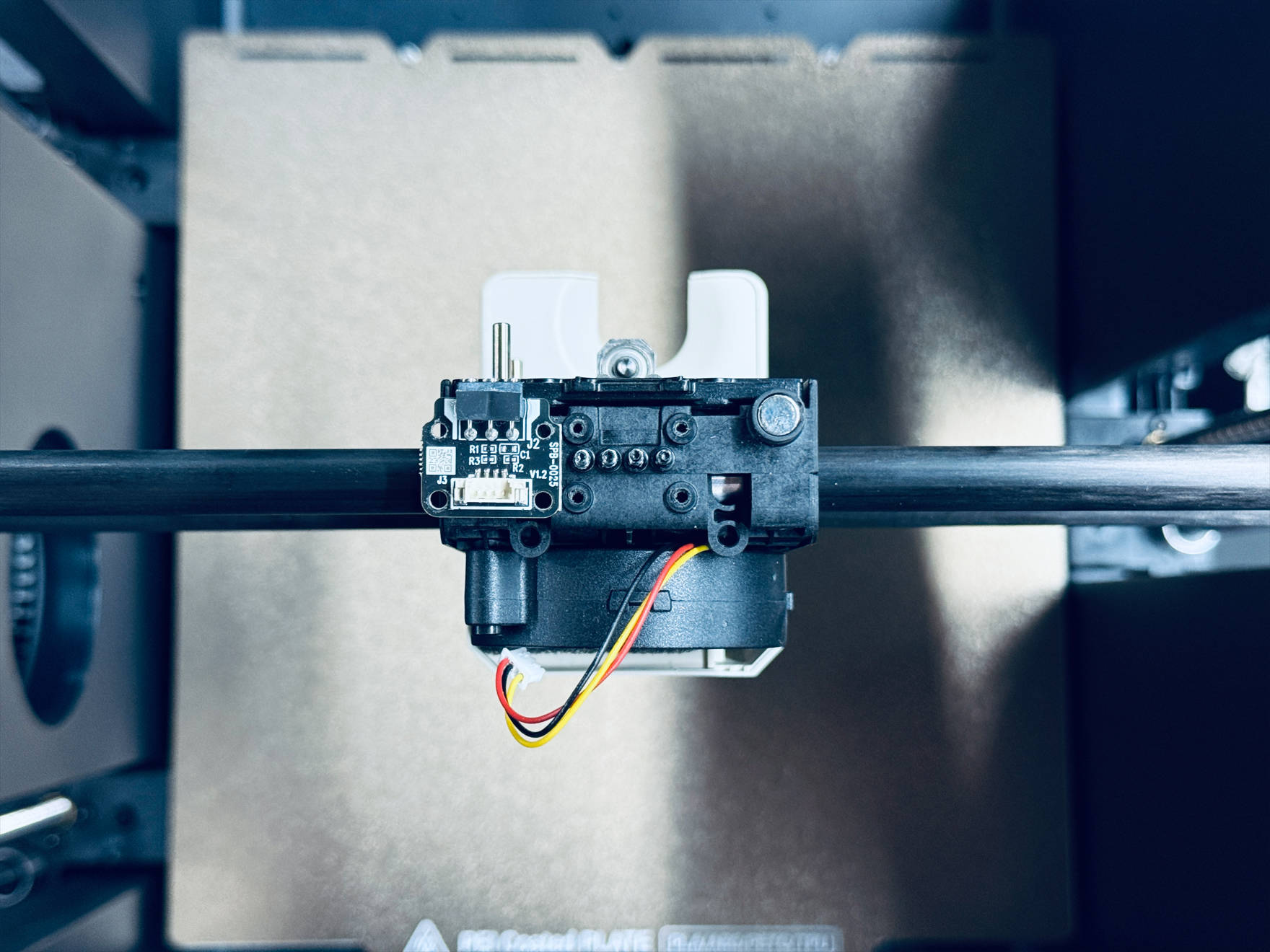

Use H1.5 hex key to remove the 4 screws, replace the adapter board, and then tighten the 4 screws.
-

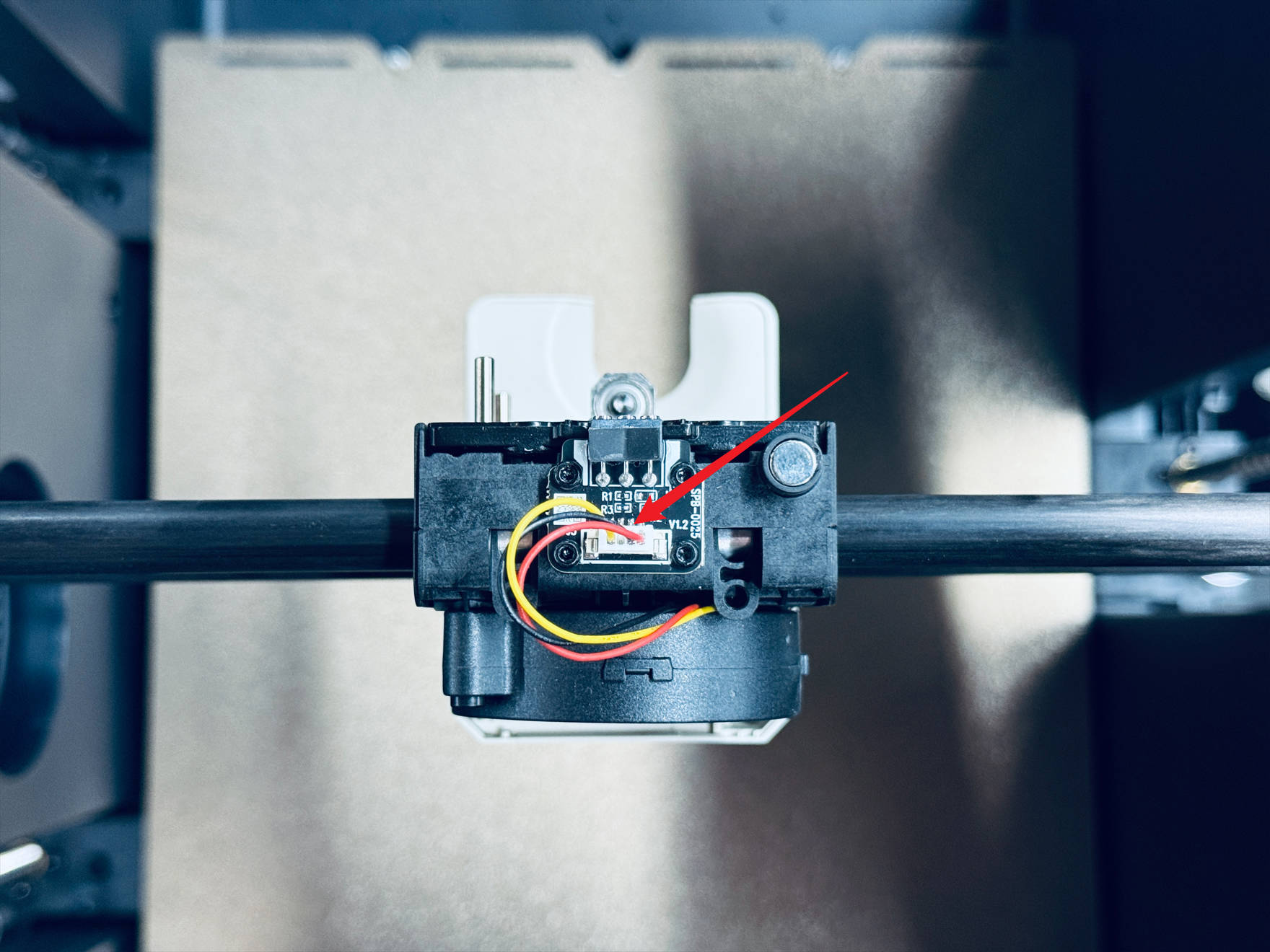

Restore the part cooling fan cable.
-

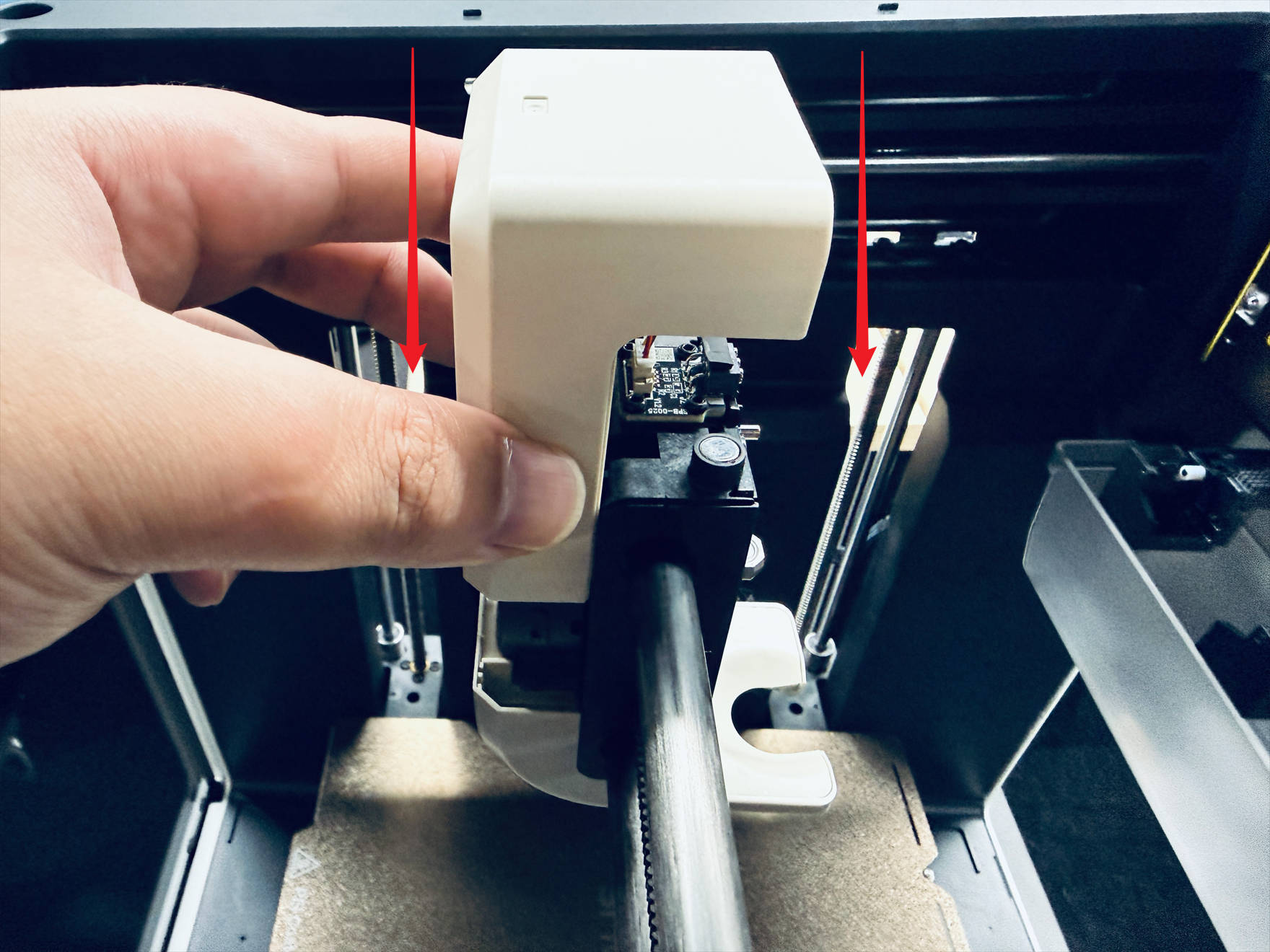

Install the part cooling fan cover.
-
Use H2.0 hex key to tighten the 2 screws.
