¶ Overview
¶ Location
-
The part cooling fan is located inside the toolhead swapper. To access the part cooling fan for replacement, the part cooling fan cover must be removed.
-

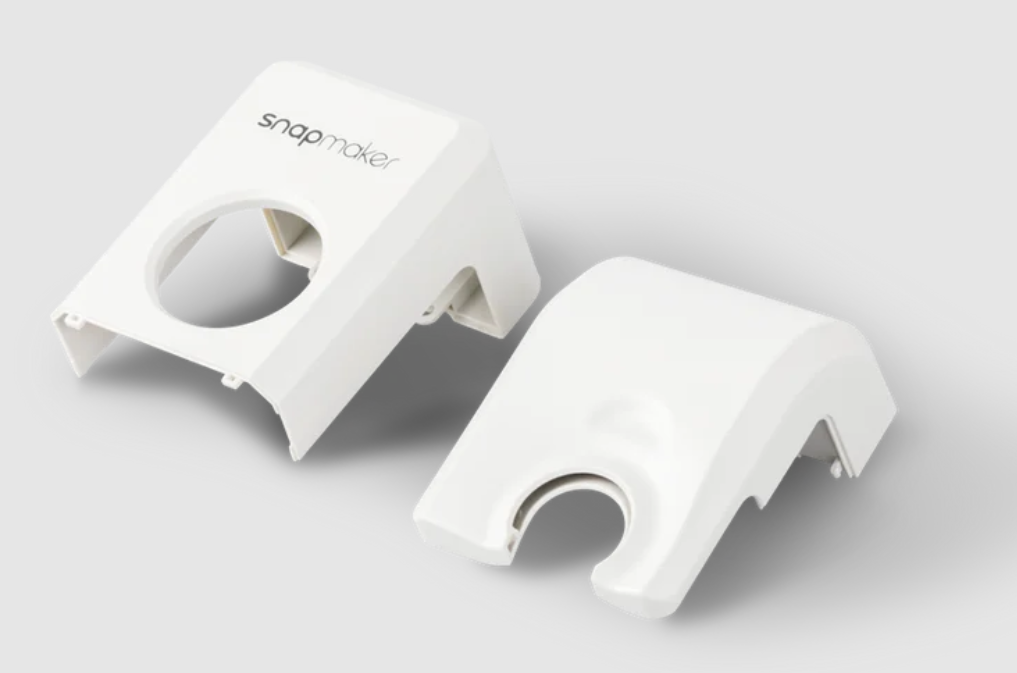

The part cooling duct kit includes the part cooling fan cover and part cooling air duct.
¶ Terminology
Different from our official term, some people may use the following terms to describe this component:
- Part fan
- Parts cooler
¶ Difficulty and Time Estimate
- Difficulty：★☆☆☆☆ (Easy)
- Estimated Time：10 minutes
¶ Where to Buy
-

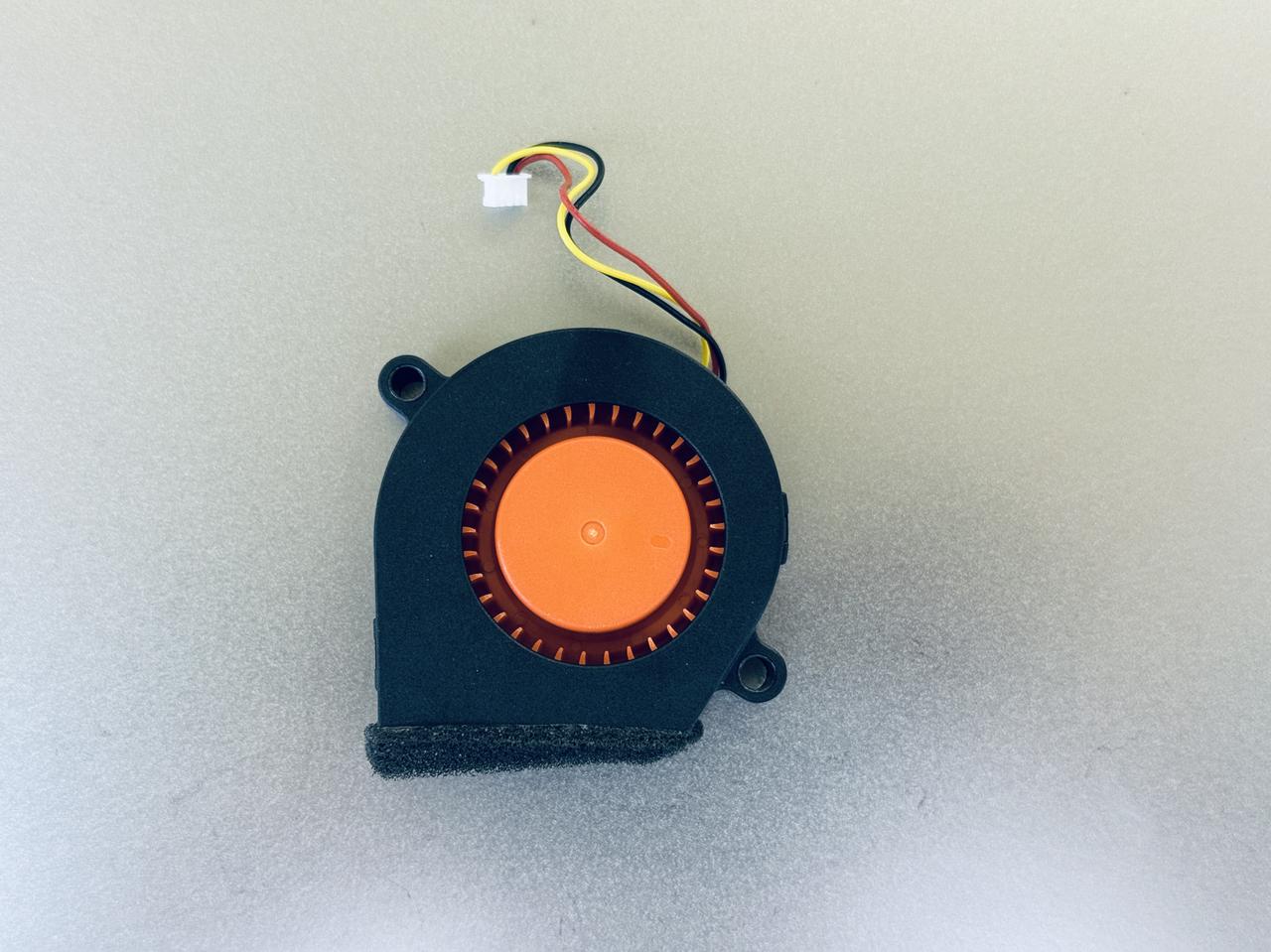

Part cooling fan:
US: https://us.snapmaker.com/products/part-cooling-fan-for-snapmaker-u1
EU: https://eu.snapmaker.com/products/part-cooling-fan-for-snapmaker-u1
Global: https://shop.snapmaker.com/products/part-cooling-fan-for-snapmaker-u1 -
Part cooling duct kit:
US: https://us.snapmaker.com/products/part-cooling-duct-kit-for-snapmaker-u1
EU: https://eu.snapmaker.com/products/part-cooling-duct-kit-for-snapmaker-u1
Global: https://shop.snapmaker.com/products/part-cooling-duct-kit-for-snapmaker-u1
¶ Tools and Parts Required
- H2.0 hex key
- New part cooling fan and part cooling duct kit
¶ Procedure
¶ Step 1. Remove the old part cooling fan and part cooling duct kit
- Park the toolhead connected to the toolhead swapper, turn off the machine and unplug the power cable, then move the toolhead swapper to a position that is easy to operate.

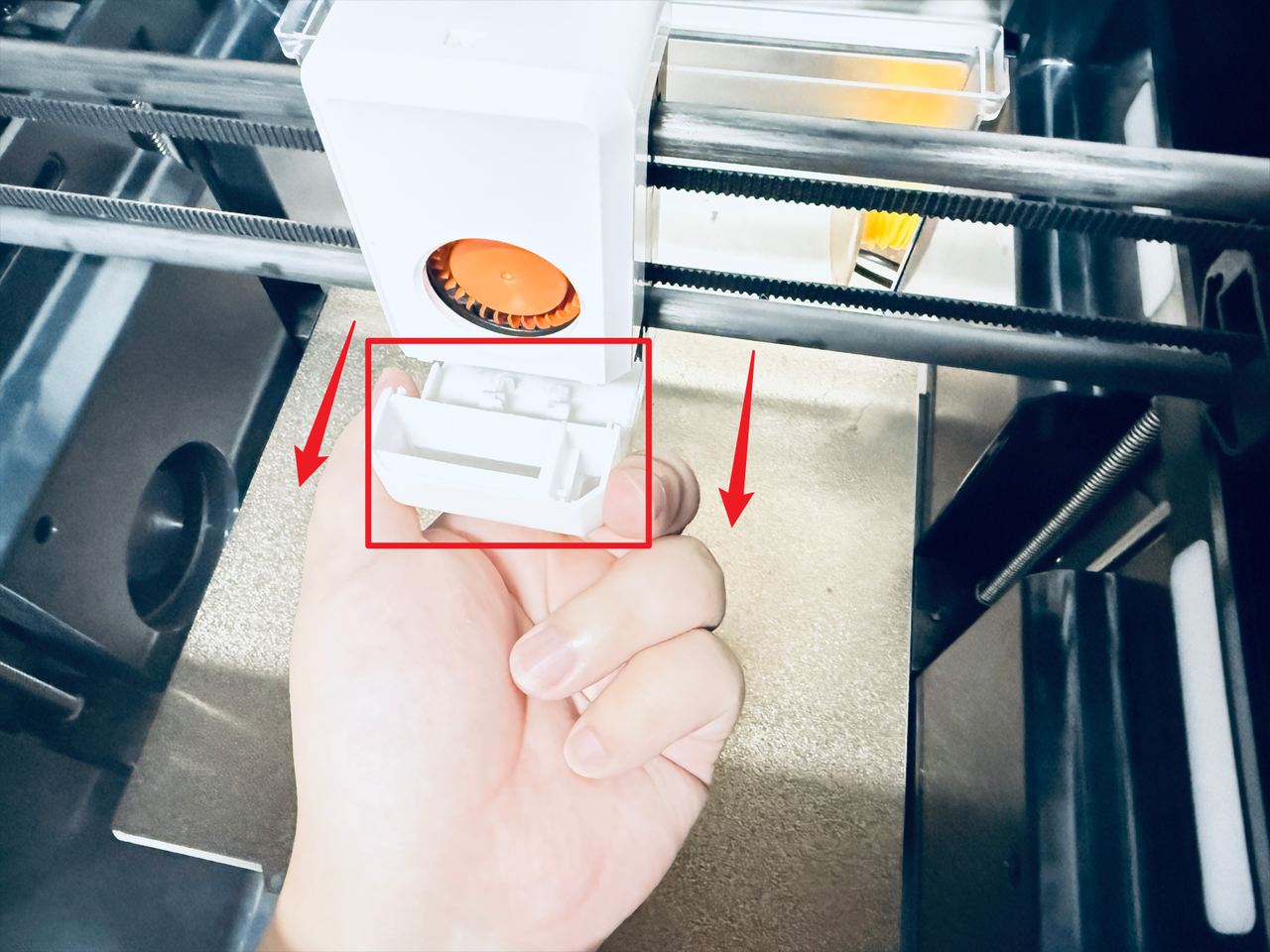

- Remove the old part cooling air duct.

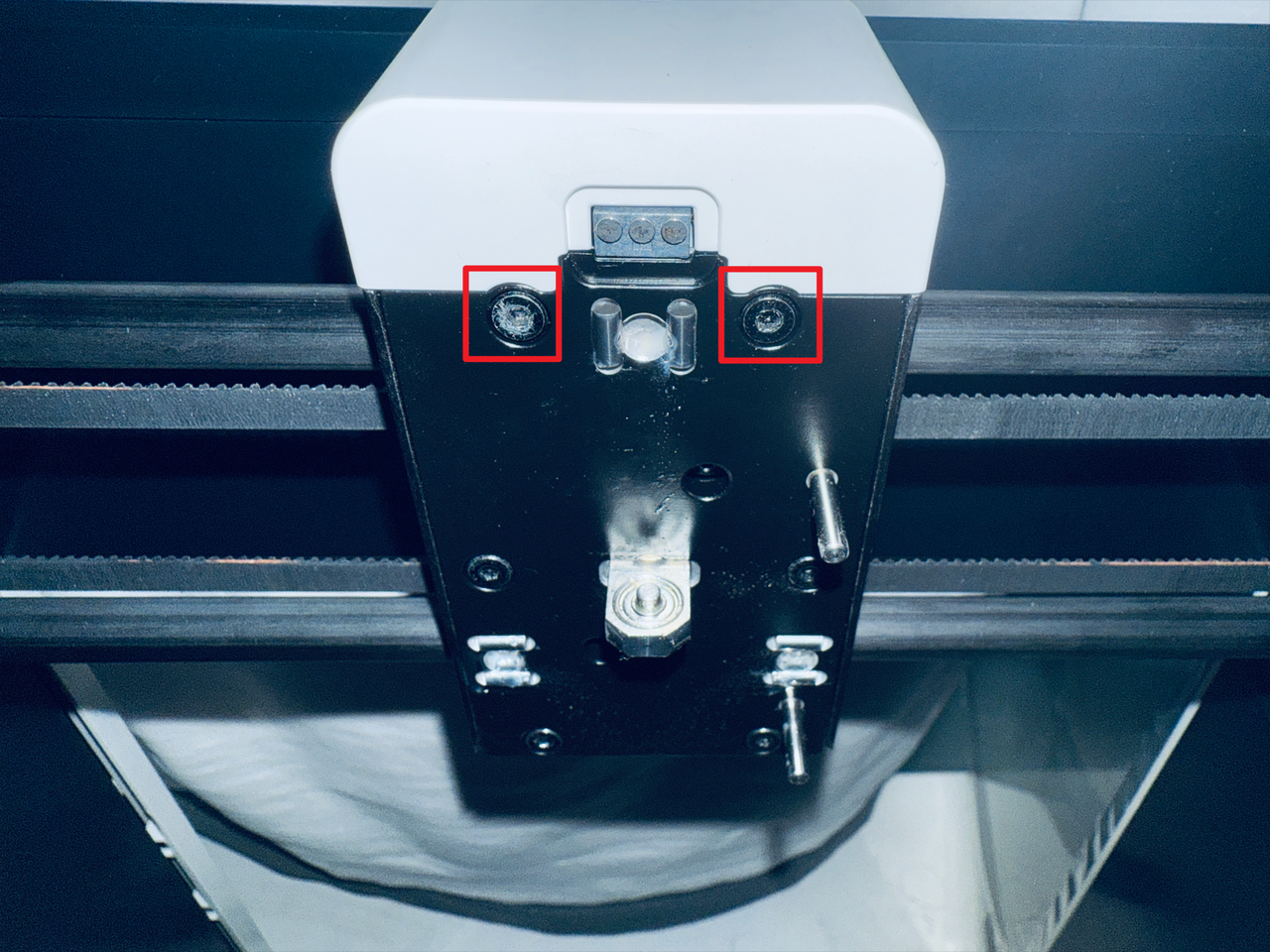

- Use the H2.0 hex key to unscrew the 2 fixing screws, then remove the part cooling fan cover.

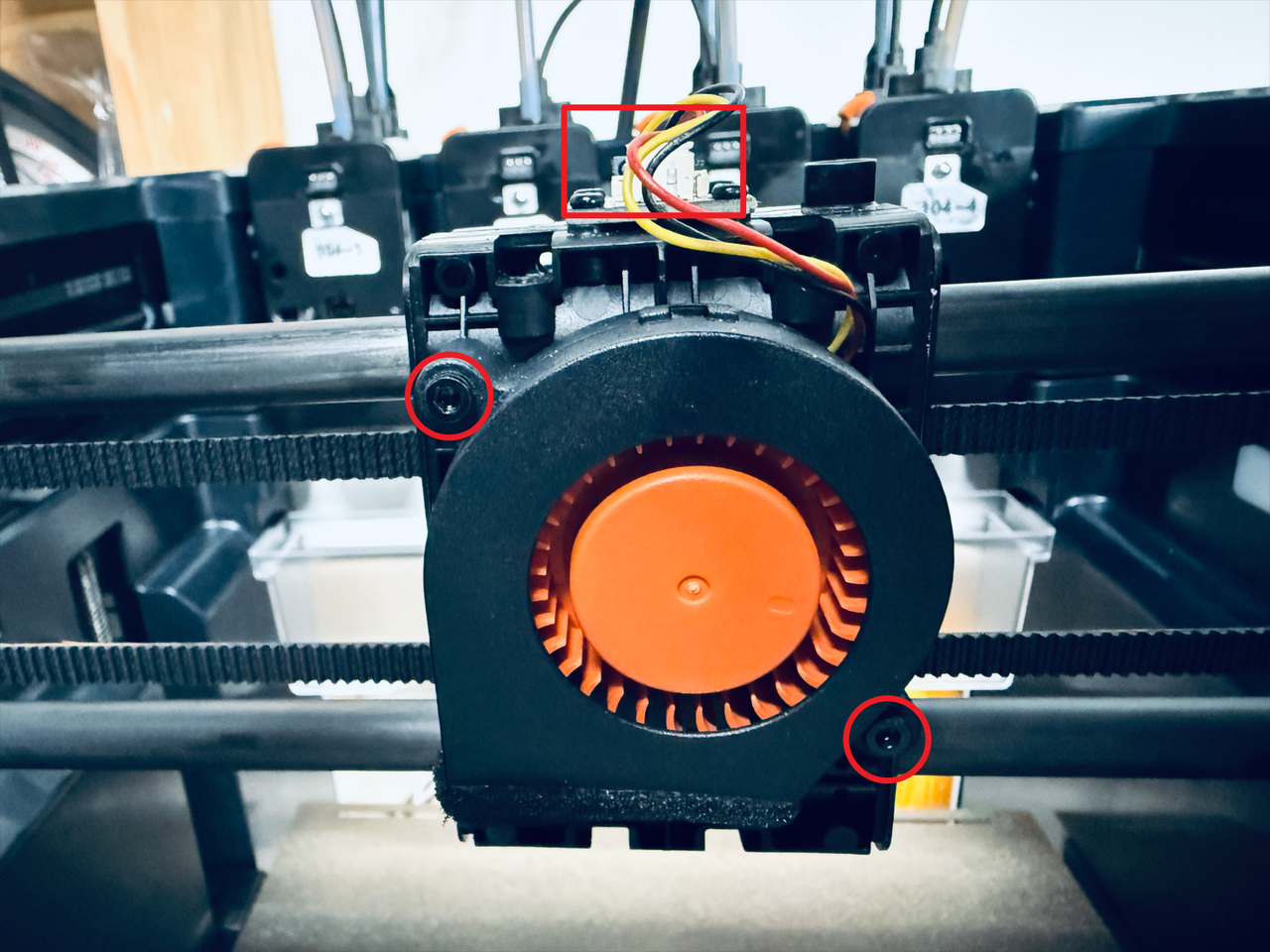

- Disconnect the part cooling fan cable, then use the H2.0 hex key to unscrew the 2 fixing screws and remove the old part cooling fan.
¶ Step 2. Install the new part cooling fan and part cooling duct kit

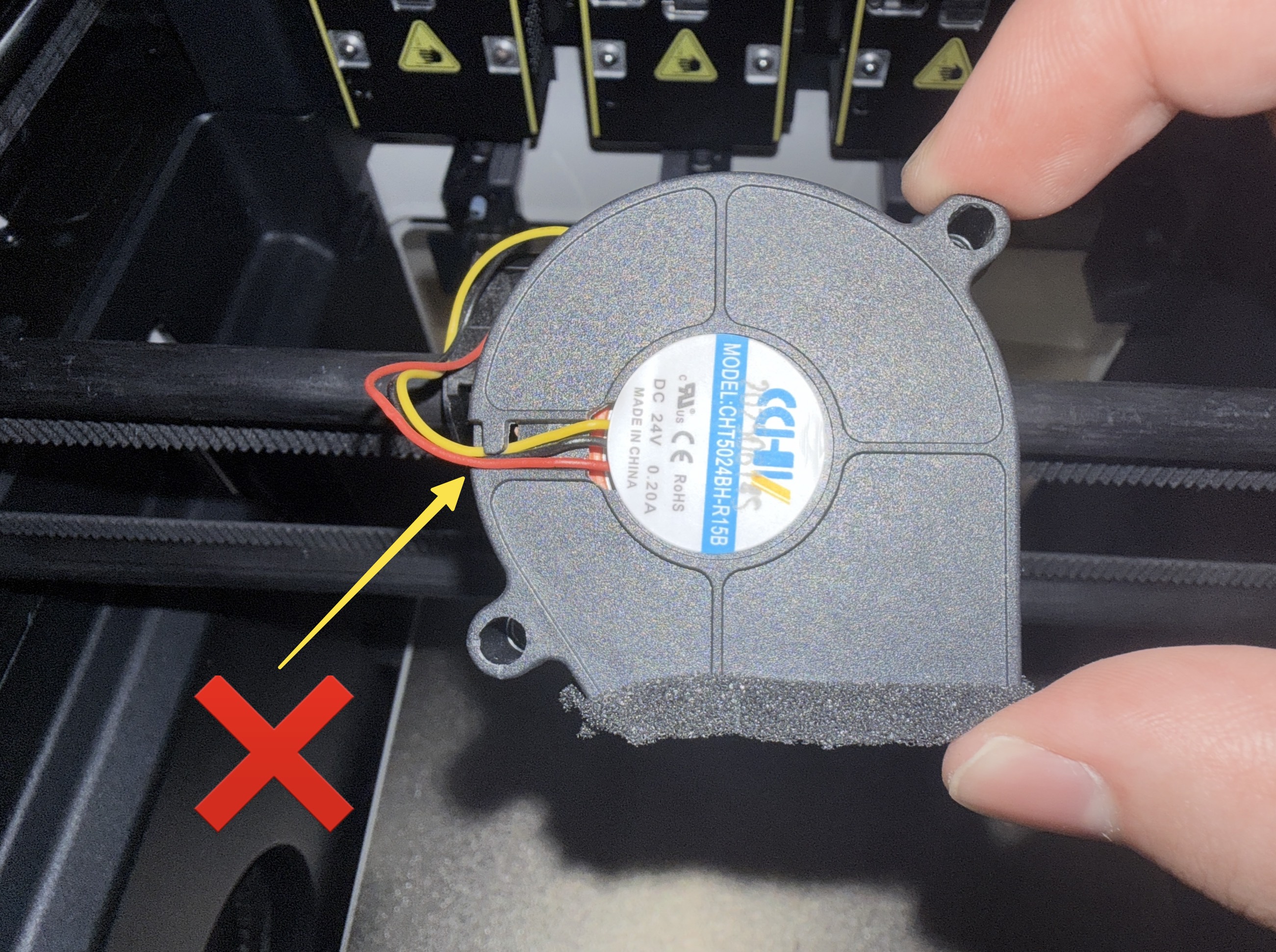

- Install the new part cooling fan, connect its cable, then use the H2.0 hex key to tighten the 2 fixing screws.

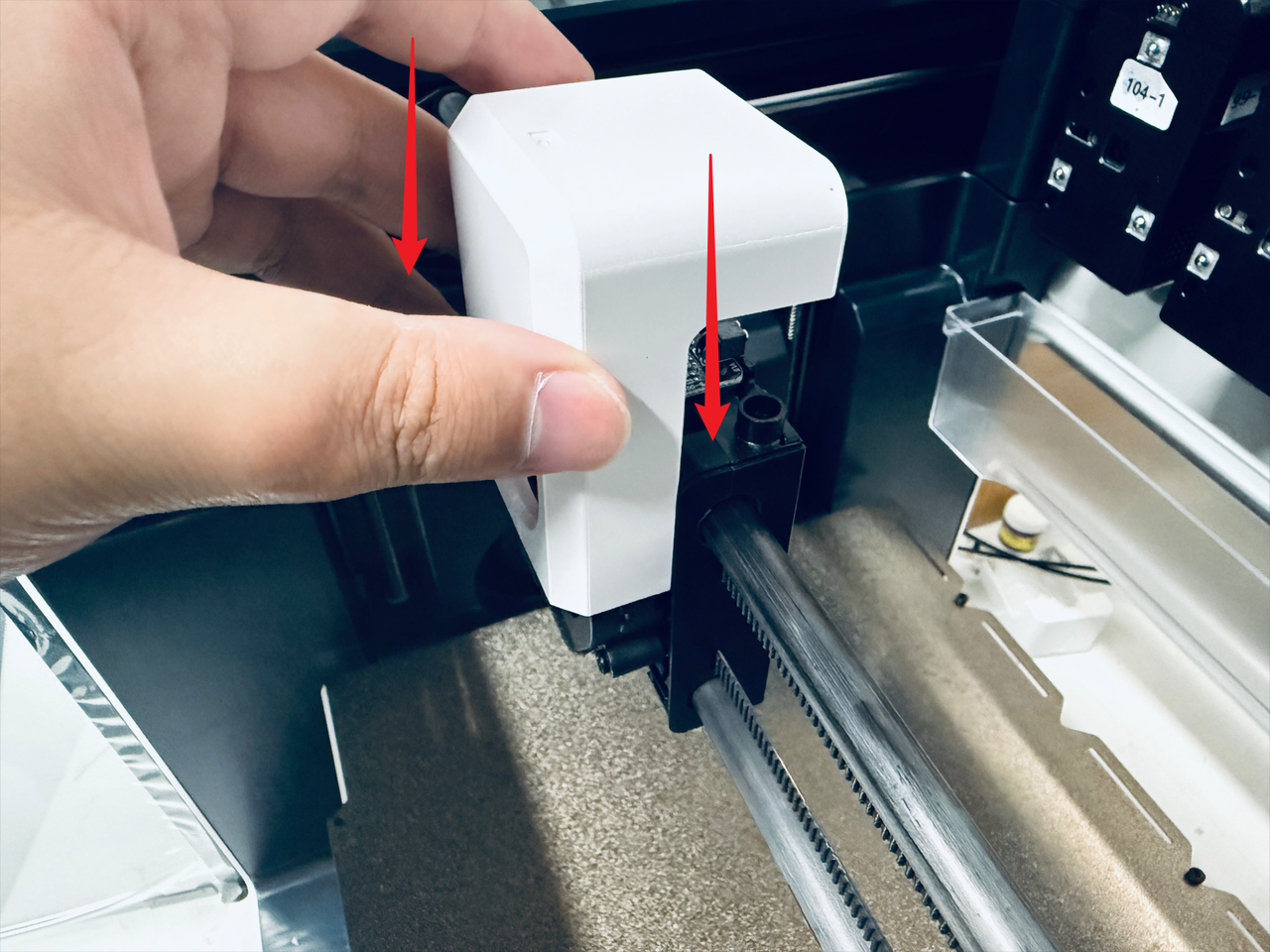

- Install the part cooling fan cover, then use the H2.0 hex key to tighten the 2 fixing screws.

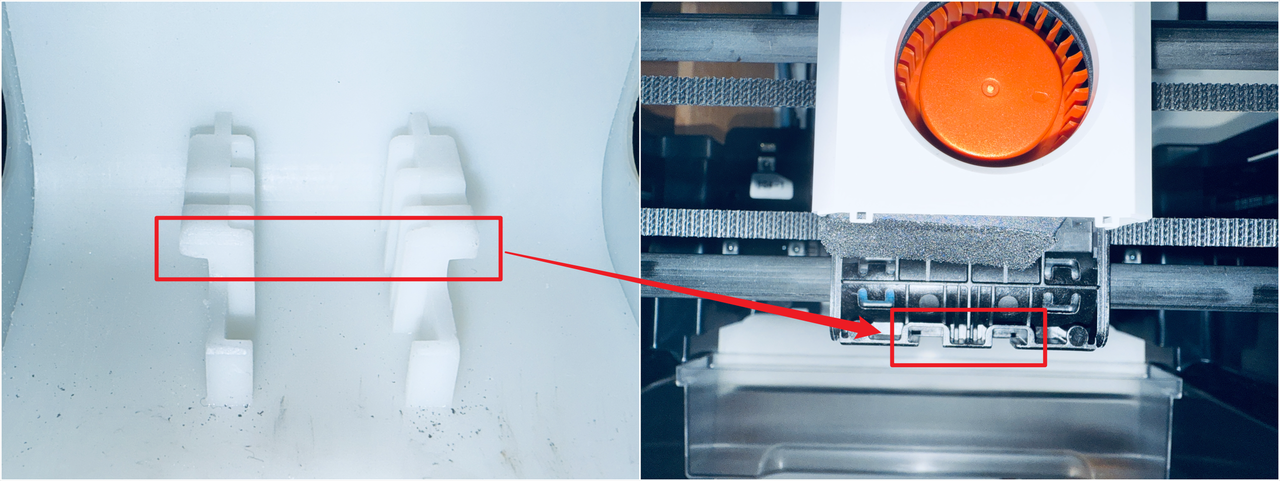

- Align the new part cooling air duct with the guide rails at the bottom of the toolhead swapper, then install the air duct.
¶ Reach out to Snapmaker Support
After following the troubleshooting steps, if you find it difficult to resolve your issue, kindly submit a support ticket through https://snapmaker.formcrafts.com/u1-troubleshooting-request and share your troubleshooting results with some pictures/videos.
Our dedicated support team will be more than willing to assist you in resolving the issue.
