¶ Compatibility
This article applies to the following models and modules. Please pay attention to the details when referring to it:
- Model: Ray
¶ Issue Description
- When running a boundary/framing check or starting a job in manual or control mode, the toolhead doesn't follow the expected path and often moves downward, causing it to hit the frame.
¶ Possible Causes
- The initial coordinates of the machine are incorrect.
¶ Troubleshooting Steps
¶ 1. Check whether all coordinate positions of the machine are correct.
- Power off and restart the machine (it should be in manual mode).
- Connect the machine to Lightburn via the serial port.
Here's a guide on how to connect Lightburn with the machine: How to troubleshoot Ray issues using serial commands
- Send the command
M2000 U0to check if all coordinate positions are normal. Normally, the response should show all coordinates as 0.
¶ 2. Use the G92.1 command to fix the coordinate issue.

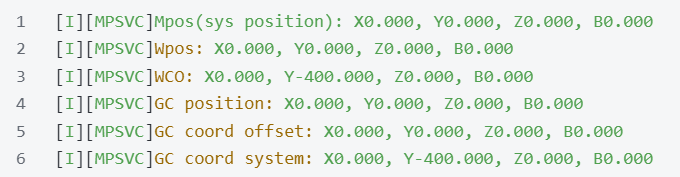

If the coordinates are incorrect, as shown in the image:
You will need to input the following command to reset the system coordinates and fix the issue:
G92.1
¶ 3. Verify the result.

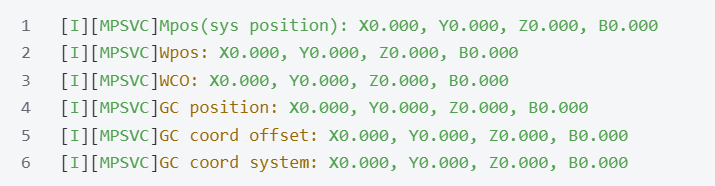

After sending the G92.1 command, send the M2000 U0 command to check if all coordinates are normal.
¶ Reach out to Snapmaker Support
After following the troubleshooting steps, if you find it difficult to resolve your issue, kindly submit a support ticket through https://snapmaker.formcrafts.com/support-ticket and share your troubleshooting results with some pictures/videos.
Our dedicated support team will be more than willing to assist you in resolving the issue.
