¶ Compatibility
This article applies to the following model and module. Please take note when referencing:
Model: U1
¶ Issue Description
When selecting a G-code file on the touchscreen to start printing, the following error appears:
Unable to parse move 'G1 X-nan Y-nan' Error Code: 0003-0529-0000-0014
¶ Possible Causes
In Snapmaker Orca, using more than four filaments may cause incorrect mapping to extruders, leading to slicing calculation errors and undefined behavior.
¶ Troubleshooting Steps
- Try moving the model and slice again.

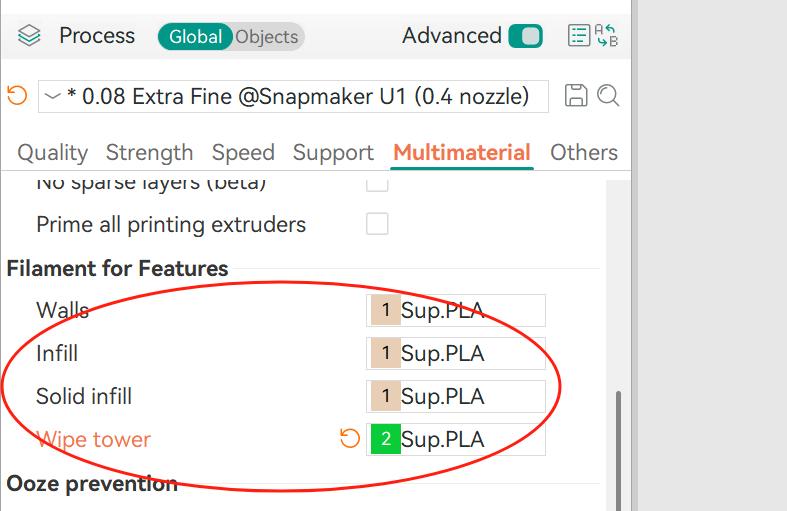

- In the Multimaterial settings, change the Wipe tower from the default option to a specific Filament.

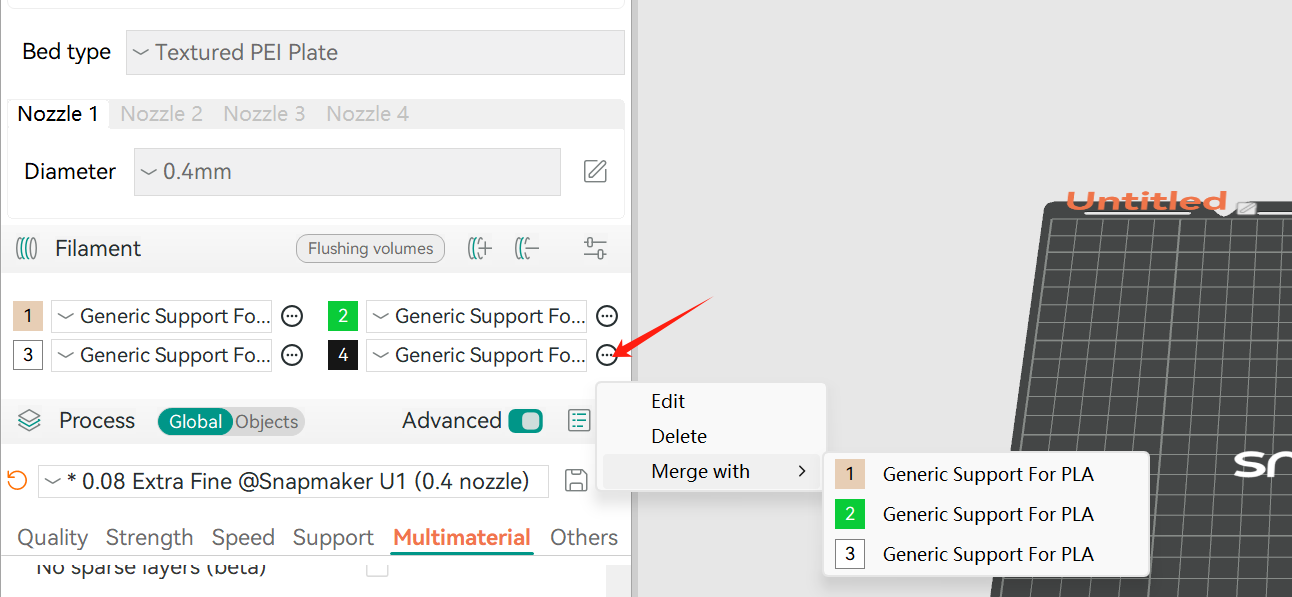

- Delete any filaments beyond the first four in the filament list, or merge them with one of the first four.
- If the issue persists after completing the previous three steps, please contact our support team and provide the corresponding .3mf file.
¶ Solutions
- Follow the temporary workarounds above to avoid the error.
- This issue will be fixed in future version.
¶ Reach out to Snapmaker Support
After following the troubleshooting steps, if you find it difficult to resolve your issue, kindly submit a support ticket through https://snapmaker.formcrafts.com/u1-troubleshooting-request and share your troubleshooting results with some pictures/videos.
Our dedicated support team will be more than willing to assist you in resolving the issue.
