¶ Compatibility
- Snapmaker 2.0: A350T / A350 / A250T / A250 / F350 / F250 / A150
¶ Module Compatibility
Note: The following module compatibility table is based on v1.18.1 firmware and Snapmaker Luban v4.10.1.
| Module | Settings That Need to Be Done in Advance | Compatibility |
|---|---|---|
| Single Extruder 3D Printing Module | Requires recalibration | Can be used as usual |
| Dual Extruder 3D Printing Module | Redo the essential calibrations in the Guides | Can be used as usual |
| 1.6W Laser Module | Redo the essential calibrations in the Guides | Basically usable as usual. The accuracy of automatic ranging may be impacted, and Camera Capture quality may deteriorate. A new firmware version is expected in March to optimize this issue. As the A150 Camera Capture has already reached its peak, there is no room for further optimization and picture quality may decline. |
| 10W Laser Module | Redo the essential calibrations in the Guides | Basically usable as usual. The accuracy of automatic ranging may be impacted, and Camera Capture quality may deteriorate. A new firmware version is expected in March to optimize this issue. As the A150 Camera Capture has already reached its peak, there is no room for further optimization and picture quality may decline. |
| 20W / 40W Laser Module | Redo the essential calibrations in the Guides | Can be used as usual |
| 50W CNC Module | / | Can be used as usual |
| 200W CNC Module | Requires Power-boosted Toolhead Cable Firmware upgrade to v1.19.0 or above |
Can be used as usual |
| 1.6W Laser Module + Rotary Module | Redo the essential calibrations in the Guides | Basically usable as usual. When starting processing, the Y/Z automatic movement margin will be smaller compared to not using the Bracing Kit. Optimization is expected in March. |
| 10W Laser Module + Rotary Module | / | Basically usable as usual. When starting processing, the Y/Z automatic movement margin will be smaller compared to not using the Bracing Kit. Optimization is expected in March. |
| 20W / 40W Laser Module + Rotary Module | / | Can be used as usual |
| 50W CNC Module + Rotary Module | / | Basically usable as usual. When setting up the tool, the Y/Z automatic movement margin will be smaller than that without reinforcement. Optimization is expected in March. |
| 200W CNC Module + Rotary Module | Requires Power-boosted Toolhead Cable Firmware upgrade to v1.19.0 or above |
Processing only. Functions such as the tool setter are not fully adapted, and there is a risk of tool collision. Optimization is expected in March. |

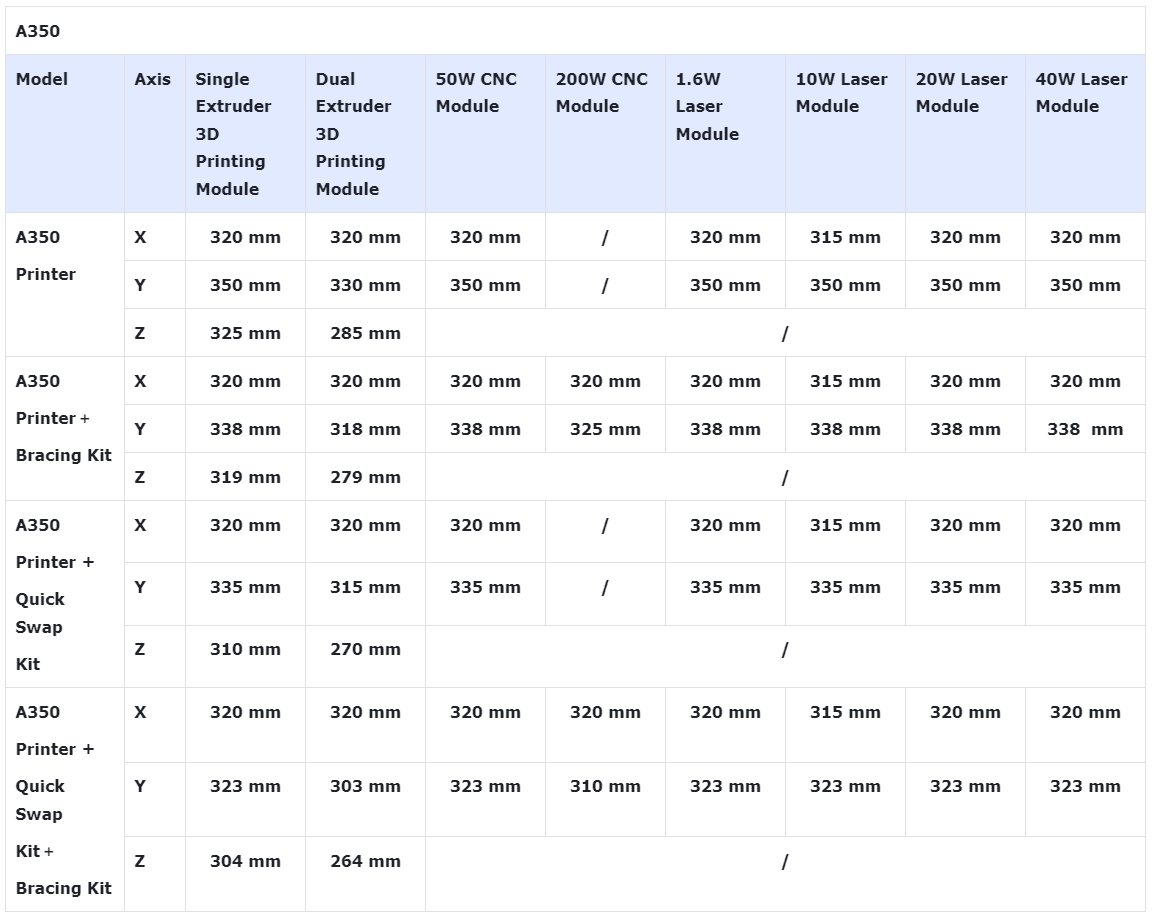

¶ Work Area
¶ Q&A
¶ Q1: My linear module slider is currently loose. Can I install and use the Bracing Kit?
Yes. Installing a Bracing Kit can reduce slider looseness and eliminate the need for tedious slider tension adjustments, repairs, and maintenance operations.
¶ Q2: What do I need to purchase to use the 200W CNC Module with Snapmaker 2.0?
-
Case 1:
If you own both Snapmaker 2.0 and Artisan and want to use Artisan’s 200W CNC Module on Snapmaker 2.0, you need to purchase:- Bracing Kit
- Power-boosted Toolhead Cable
-
Case 2:
If you only have Snapmaker A250 / A250T / A350 / A350T, purchase:- 200W CNC Module Bundle for 2.0 A350 / A350T / A250 / A250T
(Includes the 200W CNC Module, Power-boosted Toolhead Cable, and Bracing Kit)
- 200W CNC Module Bundle for 2.0 A350 / A350T / A250 / A250T
-
Case 3:
If you only have Snapmaker F250 / F350, purchase:- 200W CNC Module Bundle for 2.0 F250 / F350
(Includes the 200W CNC Module, CNC Platform, Arched Fixture Kit, Power-boosted Toolhead Cable, and Bracing Kit)
- 200W CNC Module Bundle for 2.0 F250 / F350
¶ Q3: After installing the Bracing Kit, can I use the 200W CNC Module on Snapmaker 2.0 directly?
Yes, but you must also use the Power-boosted Toolhead Cable and upgrade the firmware to v1.19.0 or above before use.
¶ Q4: If I purchase the Bracing Kit and other products together, will they be shipped separately?
- Printers or modules purchased with the Bracing Kit will be prioritized for shipment based on inventory availability.
- Accessories or materials purchased with the Bracing Kit will be shipped when the Bracing Kit is available.
If you have special requirements, please contact info@snapmaker.com.
¶ Q5: How do I buy a Power-boosted Toolhead Cable?
The Power-boosted Toolhead Cable is not currently available for separate purchase in the online store.
Please email your purchase requirements and shipping address to info@snapmaker.com, and our customer service team will assist you.
