¶ Is the Air Assist Pump included with the 40W Laser Module?
Yes.
¶ How do I attach the 40W Laser Module to the Snapmaker 2.0?
You can attach the 40W Laser Module to the machine either using the Quick Swap mechanism or four screws. Watch the installation video here.
¶ What is the compatibility between the Snapmaker machines and the 40W Laser Module?
40W Laser Module are members of the Snapmaker 2.0 series, Snapmaker Artisan series, and Snapmaker Ray series. They are compatible with 2.0 3D Printers, Artisan 3-in-1 3D Printer, Ray Laser Engraver and Cutter, and multiple modules including Rotary Module, CAN Hub, Emergency Stop Button, Enclosure for 2.0, and Air Purifier.
Please note that the 40W Laser Module can not work on Snapmaker A150. It has a net weight of 1.26kg. If the 40W Laser Module is used with the A150, it will cause serious vibration and negatively impact the quality of the laser work.
¶ Will the 40W Laser Module fit the Snapmaker 2.0/ Artisan enclosure and Laser Engraving and Cutting Platform?
Yes.
¶ What is the maximum cutting thickness of 40W Laser Module?
15mm Basswood Plywood in one pass.

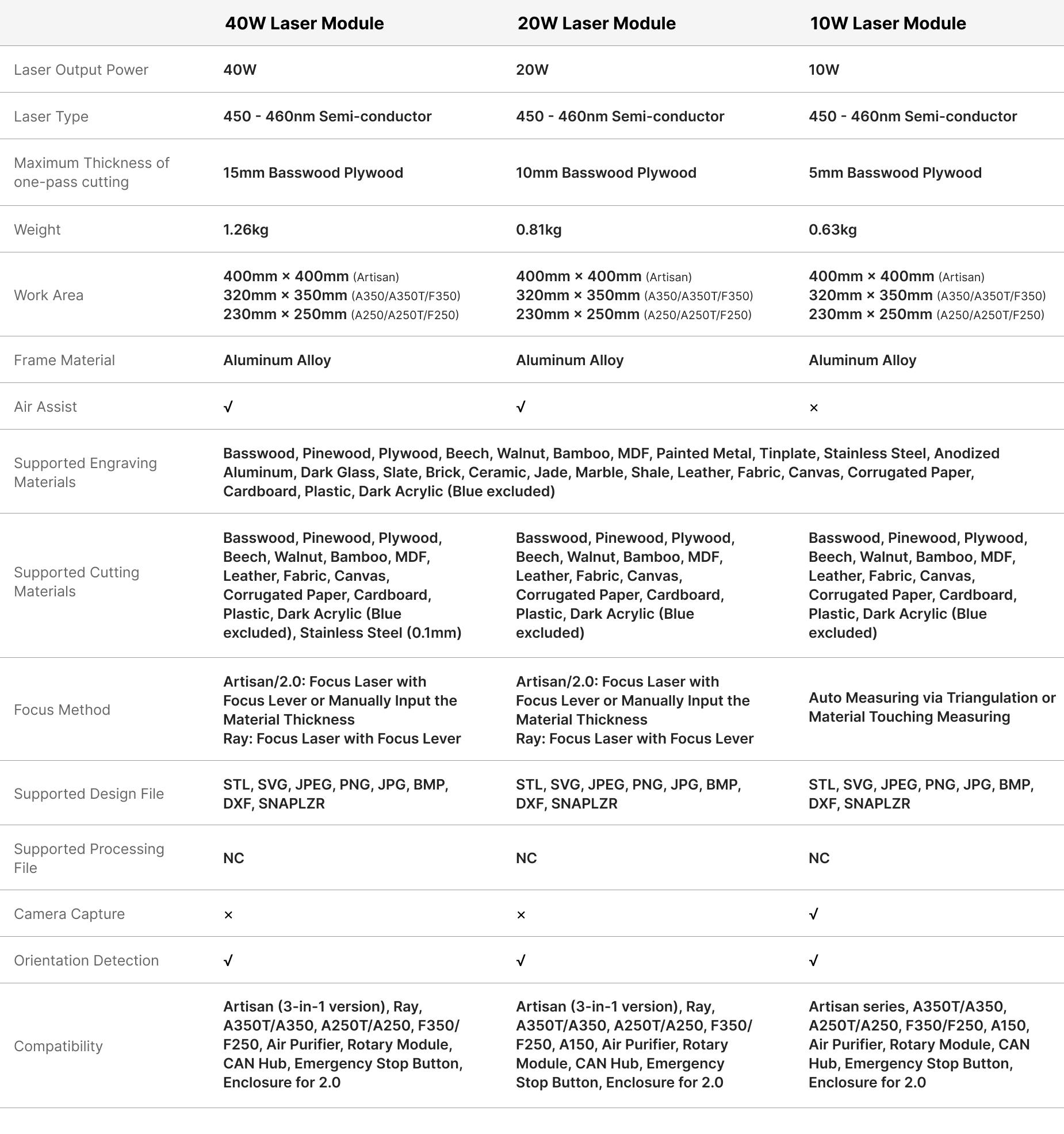

¶ What are the specs of 10W & 20W & 40W Laser Module?
[1] Depending on your material, the work speed might vary.
[2] The data is obtained based on the 3mm Basswood Plywood performing one pass cutting. Depending on your material, the cutting speed might vary.
¶ If I have both the Snapmaker 2.0 machine and the Snapmaker Artisan machine, which one should I choose?
We recommend choosing the Snapmaker 2.0 machine with the 40W Laser Module. When you purchase the Snapmaker 2.0 machine, you will be provided with a Boosted Toolhead Cable and an Air Assist Pump Conversion Cable. These cables are essential for the proper functioning of the 20W and 40W Laser Module, as there may be compatibility issues without them.
However, Snapmaker Artisan & Ray machines don't need these extra cables. If you have mistakenly selected the wrong machine type when placing your order, you can contact support at info@snapmaker.com to make the needed changes.
¶ What are the specifications of the Air Assist Pump?
Please check the table below.
¶ Does the 40W Laser Module have a camera function like the 10W Laser Module?
No, the 40W Laser Modules do not include a built-in camera function like the 10W Laser Module. Instead, they utilize a Focus Lever for laser platform height calibration, which offers a simple and reliable workflow. Rest assured, you'll achieve incredible results and a smooth experience with these new laser modules.
¶ Do you have a Trade-in program? Can we exchange our 1.6W / 10W Laser Module for the 40W Laser module?
At the moment, we do not have a Trade-in program in place. However, we hear your feedback and understand this request. We will try to explore possible options to enhance the utilization of your existing machines and modules. We appreciate your understanding.
