¶ Compatibility
- Snapmaker 2.0: A350T / A350 / A250T / A250 / F350 / F250
- Artisan
¶ Purchase Tips
| If you have | You need to purchase | You will receive |
|---|---|---|
| Snapmaker A350T / A350 / A250T / A250 | Snapmaker 200W CNC Module Bundle for 2.0 A350 / A350T / A250 / A250T | - Snapmaker 200W CNC Module - Bracing Kit for Snapmaker 2.0 Linear Modules - Power-boosted Toolhead Cable for Snapmaker 2.0 |
| Snapmaker F350 | Snapmaker 200W CNC Module Bundle for 2.0 F350 | - Snapmaker 200W CNC Module - Bracing Kit for Snapmaker 2.0 Linear Modules - Power-boosted Toolhead Cable for Snapmaker 2.0 - CNC Platform (MDF Wasteboard) for Snapmaker A350 / A350T / F350 - Arched Fixture Kit - CNC Bits (5 Bits) - Snapmaker CNC Safety Goggles |
| Snapmaker F250 | Snapmaker 200W CNC Module Bundle for 2.0 F250 | - Snapmaker 200W CNC Module - Bracing Kit for Snapmaker 2.0 Linear Modules - Power-boosted Toolhead Cable for Snapmaker 2.0 - CNC Platform (MDF Wasteboard) for Snapmaker A250 / A250T / F250 - Arched Fixture Kit - CNC Bits (5 Bits) - Snapmaker CNC Safety Goggles |
| Artisan 3D Printer | Snapmaker 200W CNC Module Bundle for Artisan | - Snapmaker 200W CNC Module - CNC Carving Platform for Snapmaker Artisan - Arched Fixture Kit - CNC Bits (5 Bits) - Quick Swap Toolhead Plate for Artisan - Snapmaker CNC Safety Goggles |

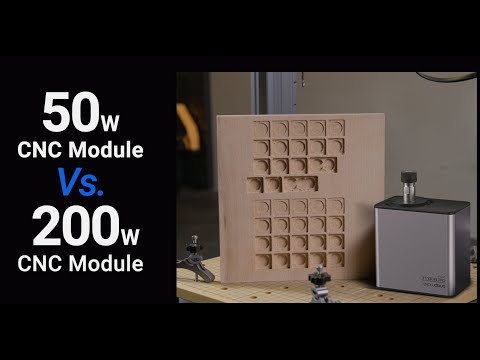

¶ Difference Between the 50W CNC Module and the 200W CNC Module
¶ Supported Materials
| Category | Supported Materials |
|---|---|
| Ideal | Hardwood (Beech, Walnut) Softwood HDF / MDF / Plywood Jade Carbon Fiber Acrylic Epoxy Tooling Board PCB |
| Capable | Aluminum (1000–6000 Series) Brass Red Copper |
¶ Can I use Artisan's 200W CNC Module directly with Snapmaker 2.0?
If you want to use the Artisan's 200W CNC Module on Snapmaker A250/A250T/A350/A350T, you need to purchase the Bracing Kit.
If you want to use the Artisan's 200W CNC Module on Snapmaker F250/F350, you need to purchase the Bracing Kit, Power-boosted Toolhead Cable, CNC Platform, Arched fixture kit, CNC Bits(5 Bits), and CNC Safety Goggles.
¶ Can I use the 200W CNC Module without connecting the Power-boosted Toolhead Cable?
No. Without the Power-boosted Toolhead Cable, the port current is insufficient and the motor load may be too high. This could cause the port’s self-restoring fuse to trip, resulting in work stoppage.
¶ Is the Rotary Module compatible with the 200W CNC Module?
Yes, the Rotary Module is compatible with the 200W CNC Module.
¶ Do I need to use the Bracing Kit when using the 200W CNC Module on Snapmaker 2.0?
Yes, the Bracing Kit is required when using the 200W CNC Module on Snapmaker 2.0.
¶ Do I need to purchase the Bracing Kit separately if I buy the 200W CNC Module Bundle for Snapmaker 2.0?
No. The Bracing Kit is included in the 200W CNC Module Bundle for Snapmaker 2.0.
¶ Why is the 200W CNC Module not compatible with the A150 Printer?
The A150 printer uses a single-axis cantilever structure. The single Z-axis does not provide sufficient rigidity to support the 200W CNC Module.
¶ Are the cutter head diameters of the 50W CNC Module and the 200W CNC Module compatible?
Yes, the cutter head diameters of the 50W CNC Module and the 200W CNC Module are compatible.
